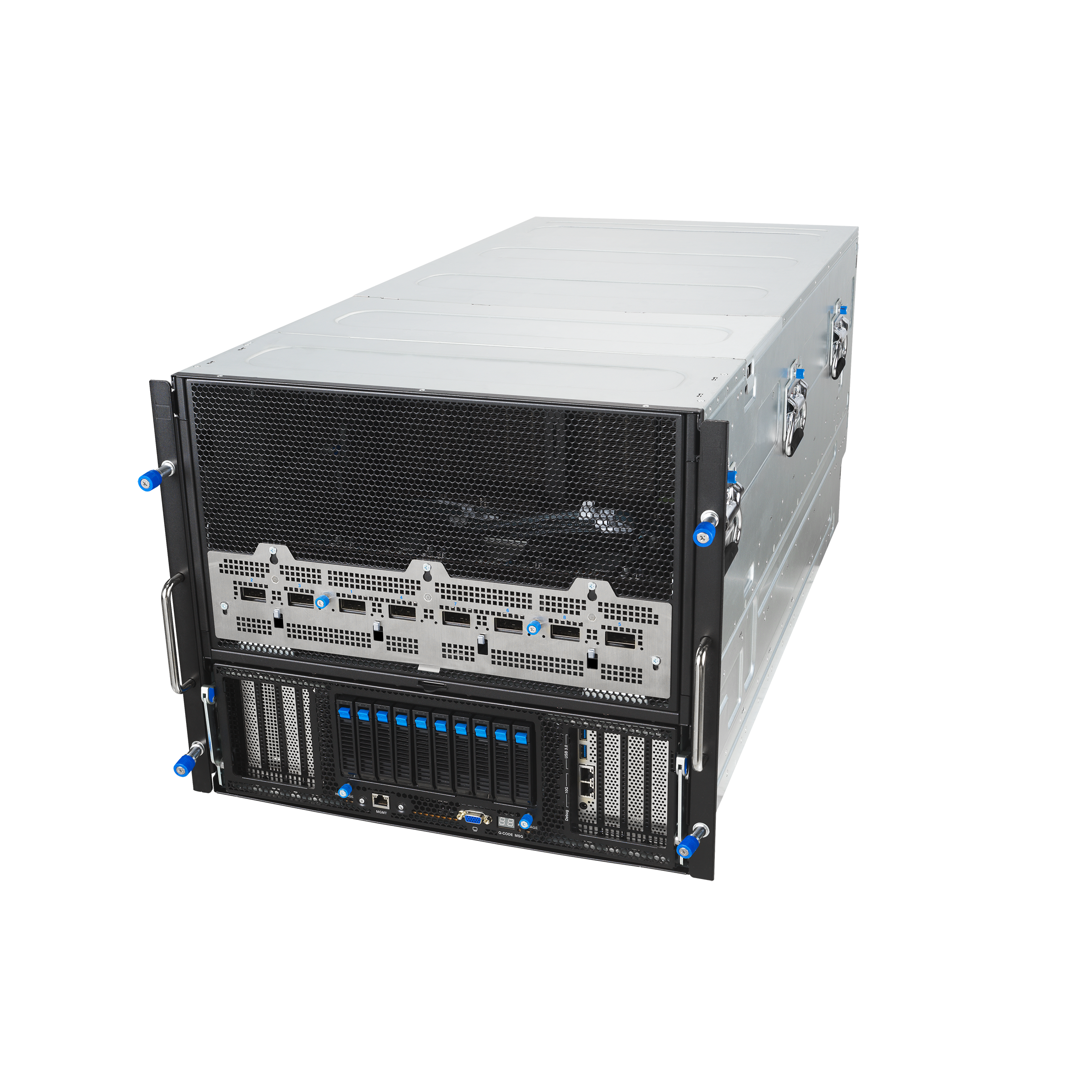

ASUS XA NB3I-E12 9U GPU AI Server
- Form Factor 9U Rackmount
- Supported CPU Intel Xeon 6900 P-cores
- CPU Sockets 2
-
Max Supported Memory
8 TB DDR5
-
Power Supply
3200 W Titanium Redundant
Key Applications
- Large-Scale AI Training
- AI Inference
- Generative AI and Large Language Models (LLMs)
- High-Performance Computing (HPC)
- Scientific Research and Simulation
Key Features

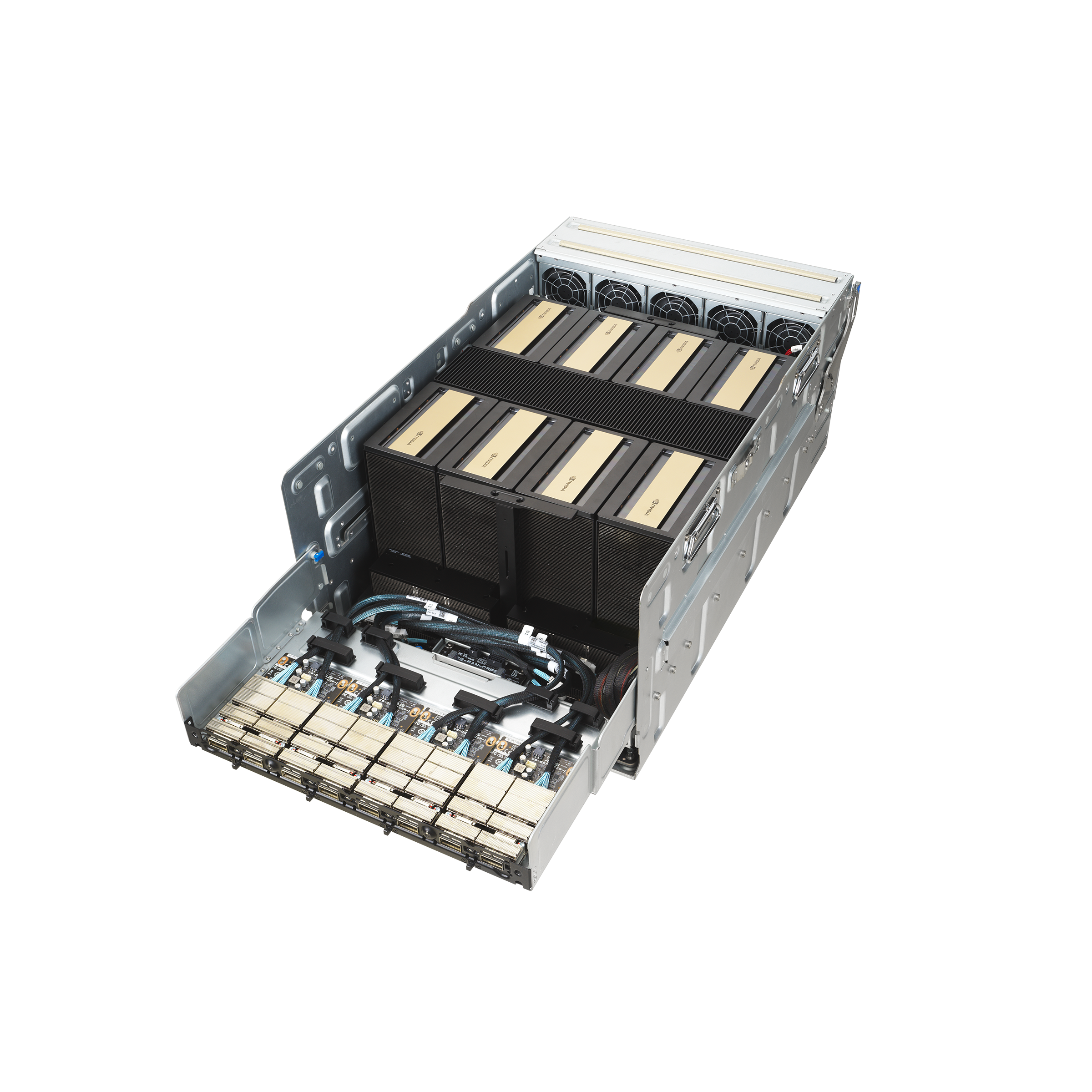

- 9U NVIDIA HGX™ B300 8-GPU server with dual Intel® Xeon® 6 Scalable processors, designed for heavy AI workloads
- 8 NVIDIA B300 GPUs with seamless GPU-to-GPU interconnect via NVIDIA® NVLink™, providing up to 1800GB/s bandwidth
- Powered by dual Intel® Xeon® 6700P processors, supporting up to 350W TDP per processor
- Embedded 8x NVIDIA ConnectX-8 (CX8) InfiniBand adapters, supporting XDR/800G per SXM module
- 32 DIMM slots and up to 10 NVMe drive bays
- Dual 10GbE LAN connectivity
- 5 PCIe expansion slots for additional networking and acceleration options
- Modular design with minimal cable usage for improved serviceability, airflow, and thermal efficiency
- Integrated NVIDIA technologies including NVIDIA BlueField®-3 DPUs, NVIDIA® NVLink™, NVSwitch, and high-speed networking
- Exceptional power efficiency with redundant 5+5 80 PLUS® Titanium power supplies
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- Cores up to 144
- CPU Manufacturer Intel
- TDP 350 W
- LAN 2 RJ45 10 GbE
- PCI-e 4 PCIe Gen5 x16 slots (up to 5 slots depending on SKU)
- Dimensions 394.5 mm Height
- Dimensions 447 mm Width
- Dimensions 945 mm Depth
- Product Model ASUS 9U HGX B300 Server
- USB 2 USB 3.2 ports
- DIMM Type RDIMM
